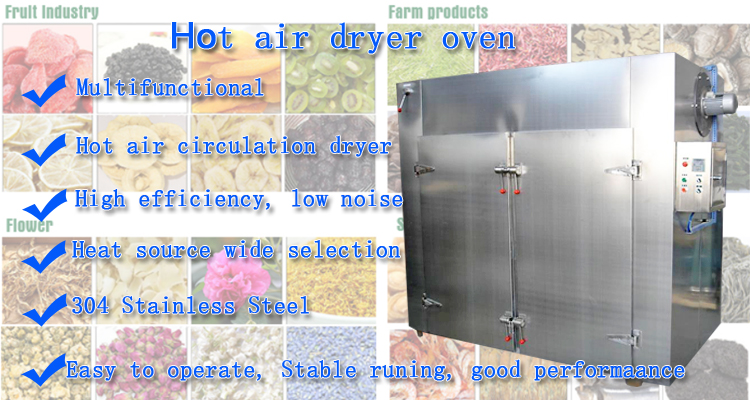

Chalk drying oven/ egg tray dryer oven/ air circulation oven industrial dehydrator
I. Brief Description
♥ The drying oven machine is suitable to dry food materials, pharmacy materials, agriculture and sideline products, industry materials, and so on.

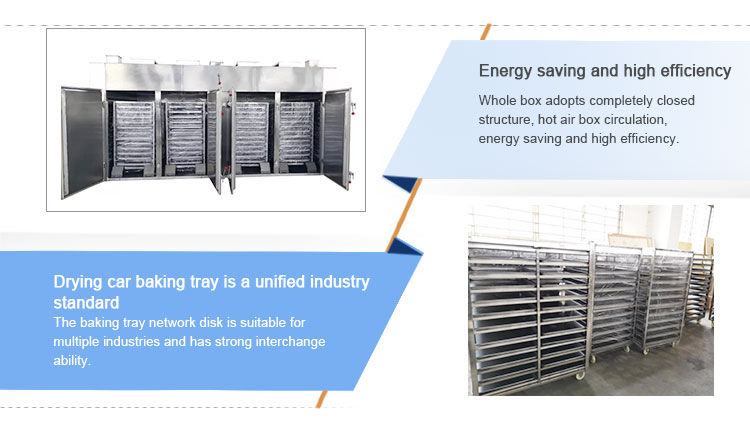

♥ This hot air circulation oven is equipped with low noise&thermostability axial flow fan and automatic temperature control system, the whole circulatory system is whole sealing, these let the drying oven’s heat efficiency from the traditional 3-7% increase to 45%-65%, the highest thermal efficiency can reach 80%.
♥ This machine adopts forced ventilation action, there are adjustable hot-blast air distributing plate in the drying oven which can make the materials to dry uniformity.
♥ The heat source can use steam, hot water, electric, far infrared, wide selection.
♥ This machine adopts whole stainless steel materials, with high quality and long service life.
♥ Widely used, simple operation, stable running, good performance.
| Technical Parameters | ||||||
| Model | Capacity | Power | Steam consumption | Quantity of trolleys&trays | Machine size | Machine Weight |
| WYCT-C0 | 50kg/batch | 0.5kw(steam heating) | 10kg/hr | 1 trolley&24 trays | 1200*1200*2000mm | 500kg |
| 12kw(electric heating) | / | |||||
| WYCT-CI | 100kg/batch | 1.1kw(steam heating) | 20kg/h | 2 trolleys&48 trays | 2300*1200*2000mm | 800kg |
| 15kw(electric heating) | / | |||||
| WYCT-CII | 200kg/batch | 1.1kw(steam heating) | 40kg/h | 4 trolleys&96 trays | 2300*2200*2000mm | 1200kg |
| 30kw(electric heating) | / | |||||
| WYCT-CIII | 300kg/batch | 2.2kw(steam heating) | 60kg/h | 6 trolleys&144 trays | 3430*2200*2000mm | 1500kg |
| 45kw(electric heating) | / | |||||
| WYCT-IV | 400kg/batch | 2.2kw(steam heating) | 80kg/h | 8 trolleys&192 trays | 4460*2200*2290mm | 2000kg |
| 60kw(electric heating) | / | |||||
