Cooling Tunnel Machine Freezing Tunnel Instant Quick Freeze Tunnel Industrial Blast Freezer

Product name Freezing Cooling Tunnel Machine
Freezing power 10P
Running current 25A
Starting current 38A
Cold wind volume of evaporator 15000m³/h
Cold wind volume of condenser 28000m³/h
Material SUS304 316L stainless steel
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Product Description

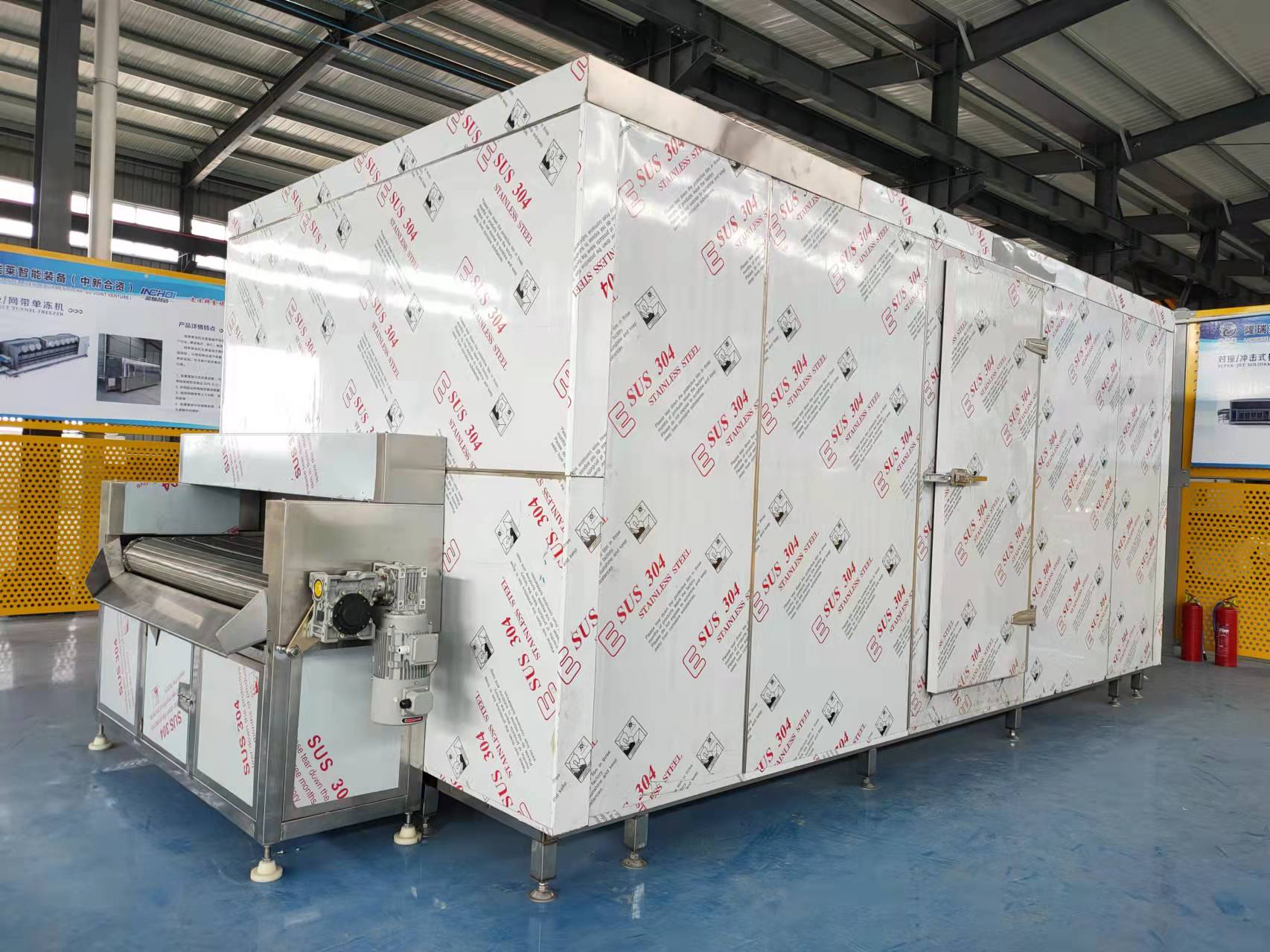

Tunnel quick freezer is a kind of tunnel structure is relatively simple and high efficient quick-frozen device, it have convenient operation and long service life. library board adopts double stainless steel sandwich polyurethane insulation board ,The heat preservation effect is good. internal components using high-quality stainless steel SUS304.easy cleaning ,HACCP requirement. stainless steel mesh belt, the surface is smooth, easy to clean, using water frost, ensure clean sanitation. Freezing time can be adjusted, suitable for a variety of quick freezing food

1 Freezing cooling tunelHf290a6aaae3e4e088ba40281b36ed367N

Advantages
1.Use imported PIC controller
2.Small size, energy saving, reliable performance
3.Simple structure, convenient operation, long service life
4.Compressed by imported equipment and stainless steel spring wire, the surface is flat, the value of the mesh belt can be
selected according to the requirements
5.Adopt heat wave blowing method, high freezing efficiency
6.Single or double mesh belt combination can be selected according to output requirements
7.Use water flushing to ensure cleanliness and hygiene
8.The imported frequency converter realizes stepless speed regulation, and the freezing time of frozen products can be adjusted
continuously according to the needs, which can be adapted to the processing of various frozen products.
9.The library body is made of rigid polyurethane foam, which has good thermal insulation performance. The inner and outer brackets
and the inner and outer brackets of the library are made of stainless steel, which is easy to clean.

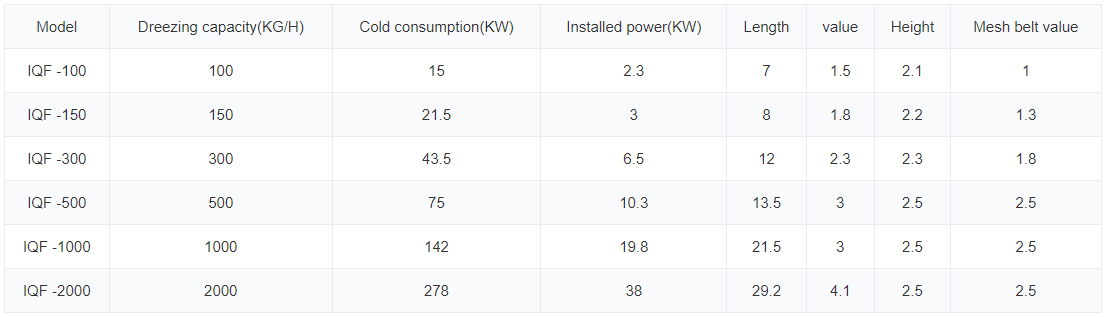

Equipment model
Specification
item
value
Applicable Industries
Manufacturing Plant, Food & Beverage Factory, Farms
Showroom Location
Viet Nam, Philippines, Mexico, Russia, Thailand, Morocco, South Korea, Romania, South Africa, Malaysia
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
New Product 2021
Warranty of core components
2 years
Core Components
PLC, Motor, Gear, Pump
Condition
New
Type
Tunnel Freezer
Place of Origin
China

Shandong
Brand Name
INCHOI
Voltage
380v,50hz
Power
customized
Dimension(L*W*H)
4000*2040*3000mm(Customized)
Weight
3000
Warranty
2 years
Cooling Capacity
100-2000KG/H(Customized)
Key Selling Points
Easy to Operate
Product name
IQF Tunnel Quick Freezer
Application
Food Quick Frozen Machine
Function
Quick-freezing Food
Freezer Type
Cold Wind Cooling
Material
304 Stainless Steel
Capacity
100KG/H~3000KG/H
Usage
Seafood Freezing
Keywords
Flash Freeze Tunnel
Type
Plate Freezer
Key Selling Points
Competitive Price
Packing & Delivery
Machine packaging with plastic film and fixed by steel wire in the container.
