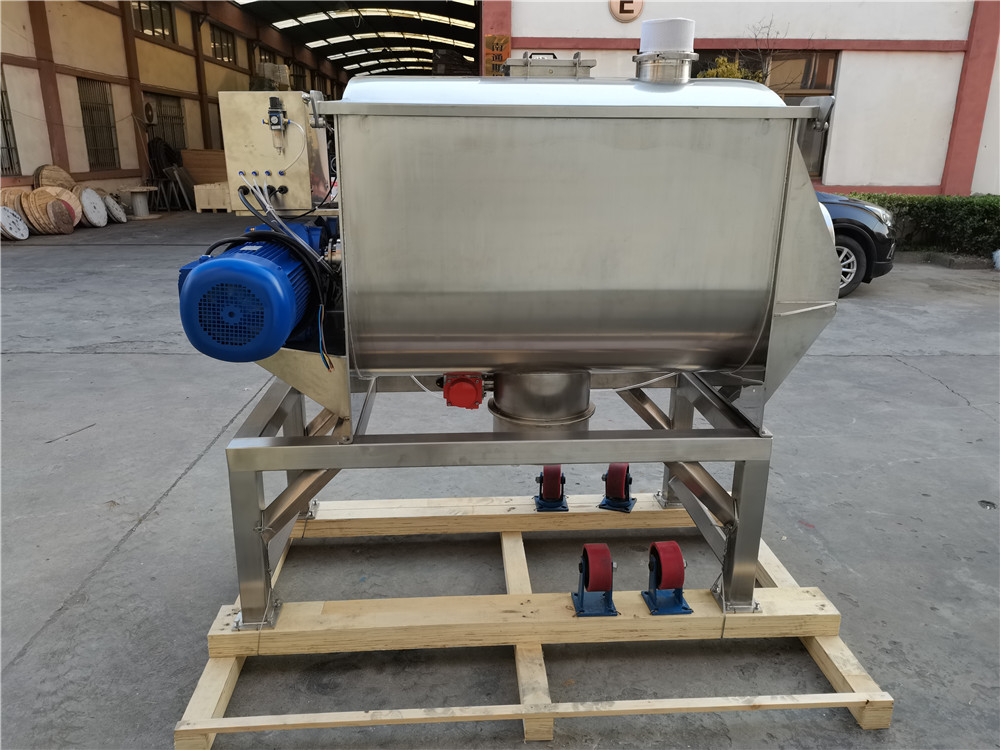

Industrial Horizontal Powder Mixer / Ribbon Blender / Dry Powder Mixing Machine

Home » Products » Cosmetic Machinery » 10-Powder Machine » Industrial Horizontal Powder Mixer / Ribbon Blender / Dry Powder Mixing Machine

Contanct Us

+86-17620973680

tomzhao@yalianmachine.com

No.42,Yuanxia paifang street, Longgui Baiyun District, Guangzhou 51000

Industrial Horizontal Powder Mixer / Ribbon Blender / Dry Powder Mixing Machine

Industrial Horizontal Powder Mixer / Ribbon Blender / Dry Powder Mixing Machine

1.Pure copper motor, gear reducer, strong power, stable operation and long service life

2.Bold 90mm large shaft-to-wheel, with gasketed shaft head, no powder leakage and long service life

3.Built-in double-layer thickened spiral ribbon, mixing in reverse and reverse direction, mixing uniformly, and fast discharging speed

4.Double cylinder entrainment, impeller discharge, fast speed, wear resistance, discharge measurement

5.Carbon steel hopper, strong and durable

6.Convenient disassembly and assembly, stable operation, low working noise

7.High temperature resistant bearing, good sealing, low friction resistance, easy lubrication

Quantity:
Availability:





Inquire Add to Basket

Product Description

Ribbon Mixer

 l High mixing speed and short uniform time. Mixing speed is around 8-20mins.
l All stainless steel 304 material.
l Full Mirror polished mixing tank inside, as well as ribbon and shaft.
l Safety switch ,safety grid.

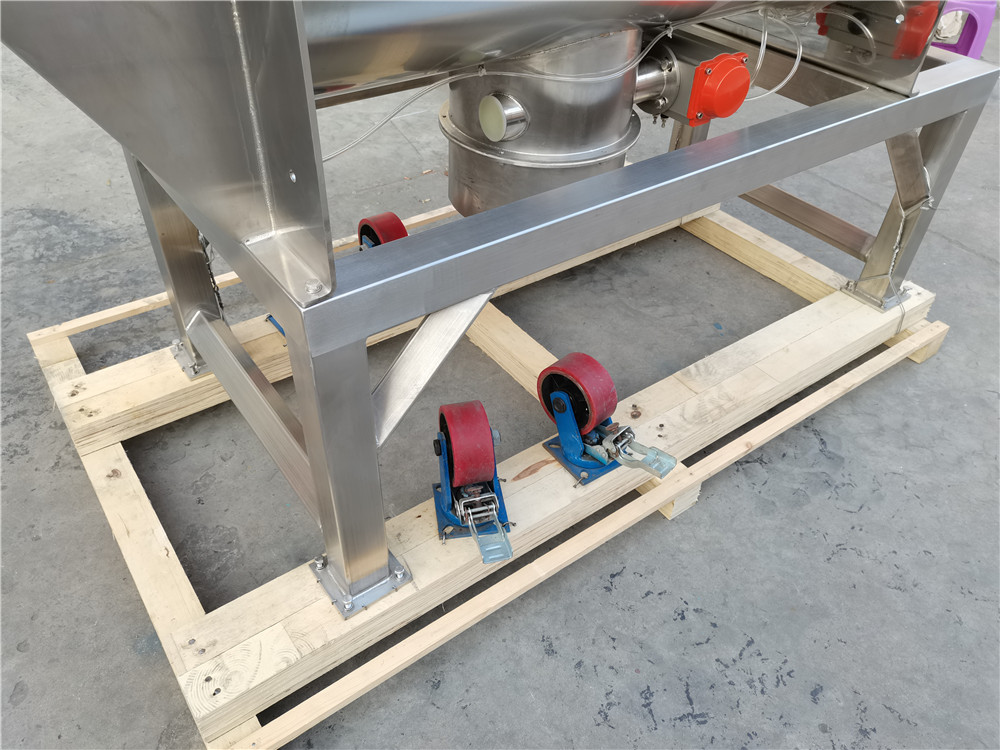

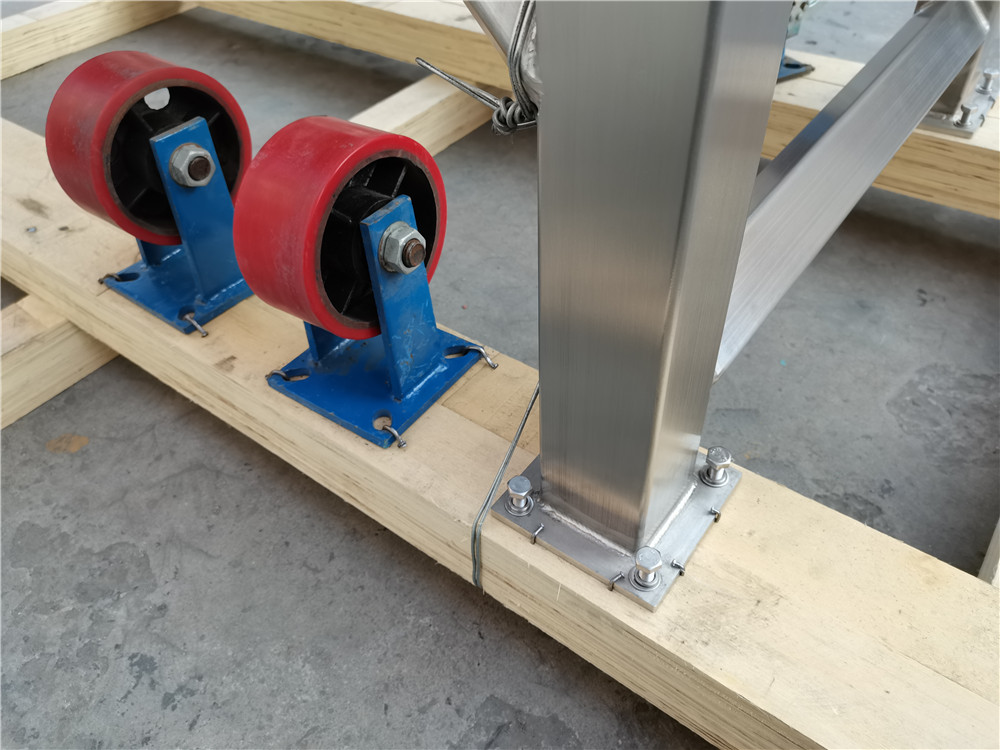

l Castors for easy moving.
l Discharge is Pneumatic valve control,design to guarantee no material leaking.

New designed cover

SS304 air out let  2. An observation port was added to the lid

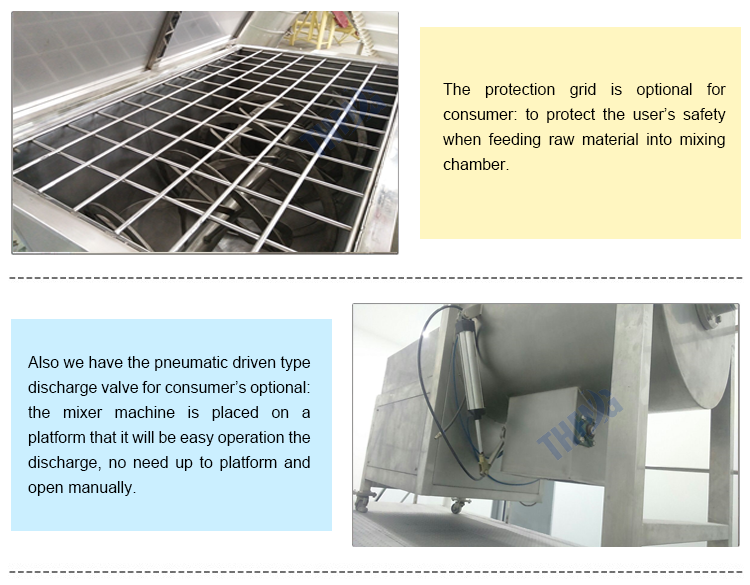

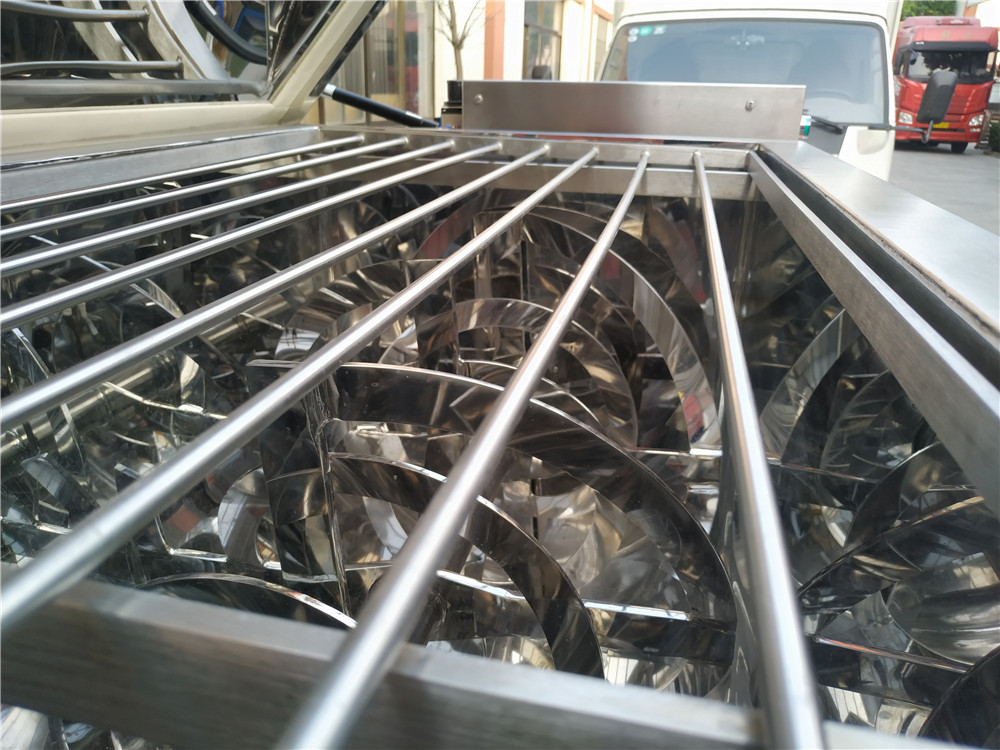

There is a safety grid inside the observation port
The main safety grid is installed inside the machine

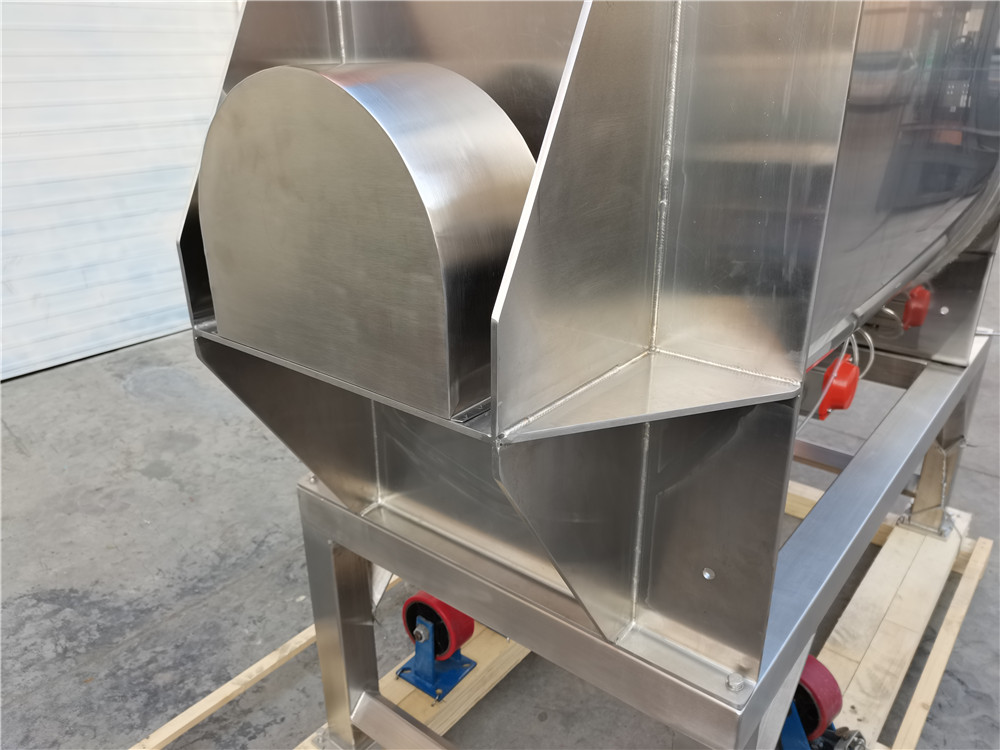

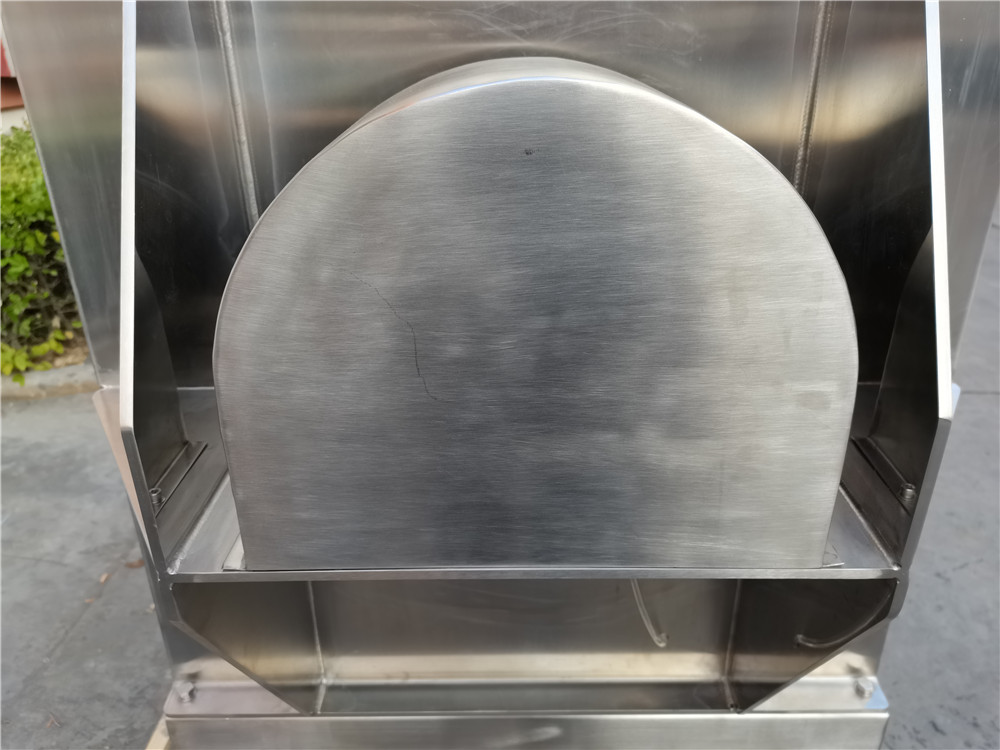

Full welding

 The whole welding place of the machine are full welding, including the ribbon, the frame, the tank, etc. Especially for the lid of
the barrel, the full welding technology makes sure there is no gap to hide material.

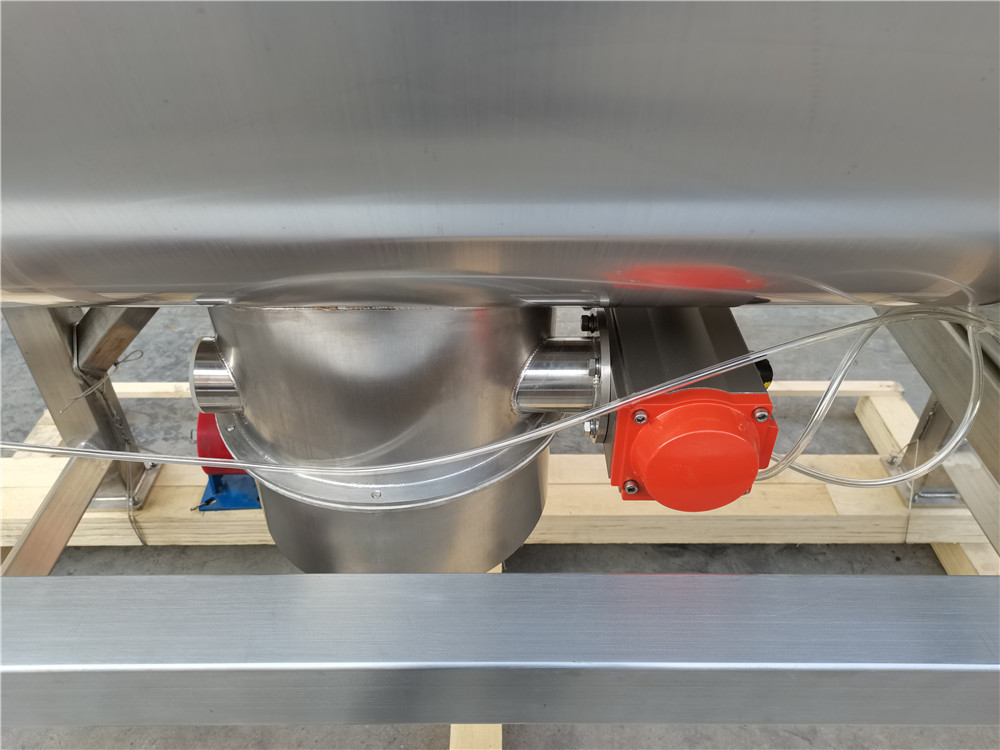

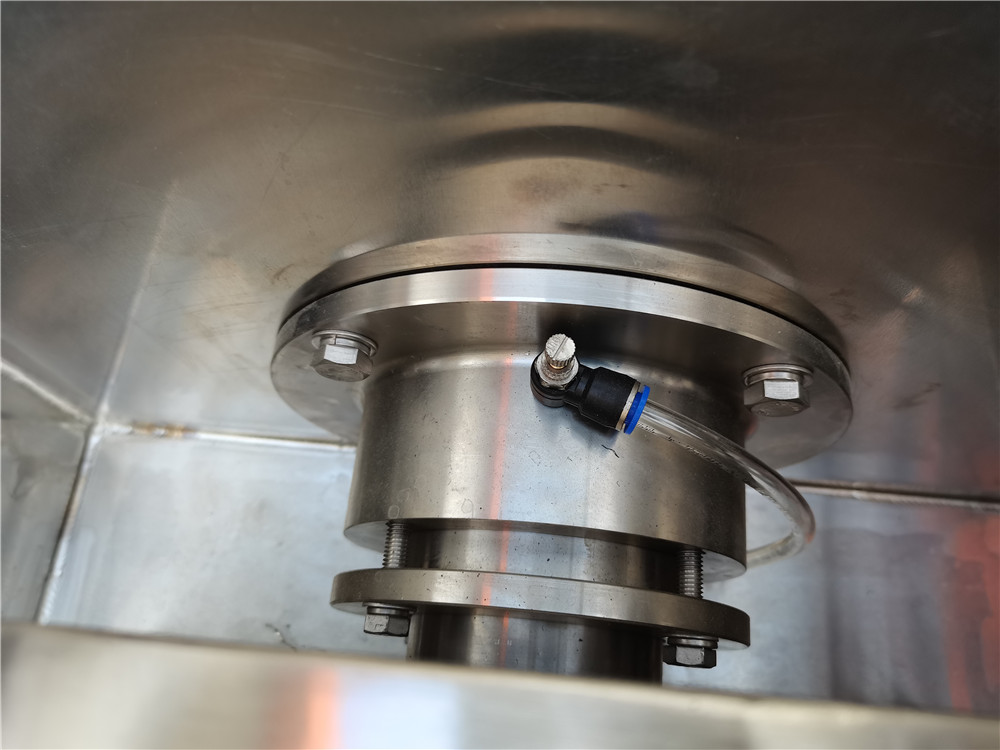

Pneumatic discharge

1.High quality Pneumatic discharge device with key on shaft, able to bear heavy material 2.Gas seal, no leakage

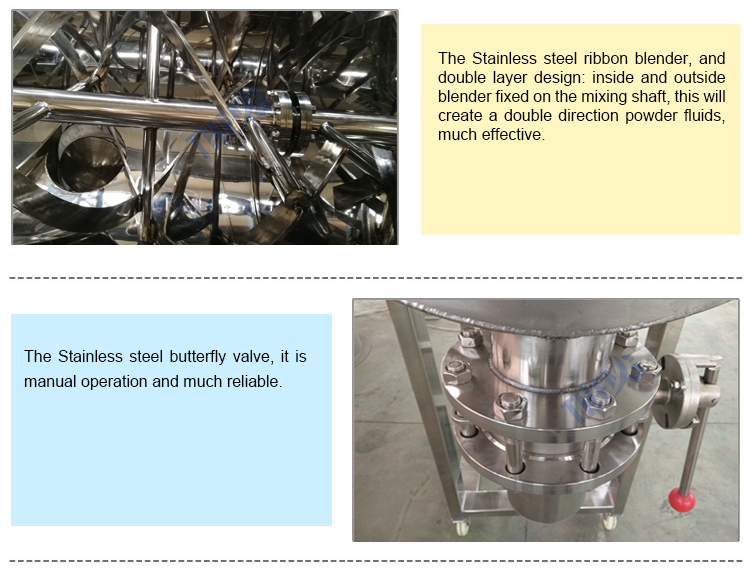

Double-ribbon

The outer ribbon pushes the material from the two sides to the center. The inner ribbon pushes the material from the center to both sides


Operation panel

on  2.off
discharge
Time setting
Switch
Emergency stop button

Features of Mixing Machine:

Horizontal tank body, covers small area
Bearing is on both ends of the mixer, the material is not easy to enter, repair rate is low.

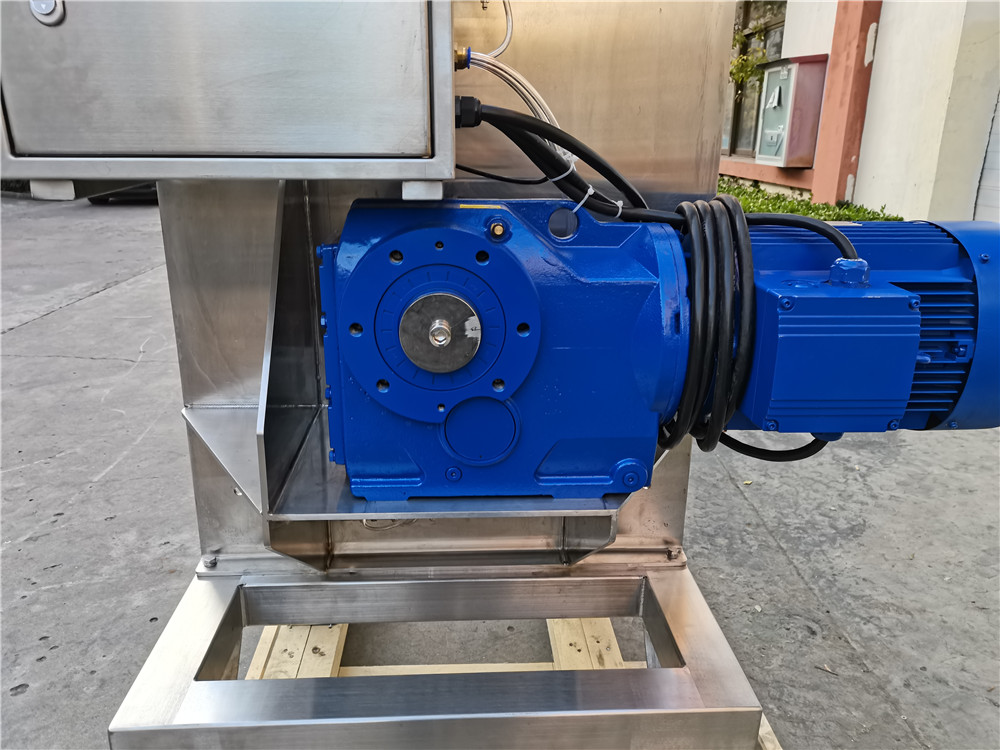

Gear box drive the auger shaft, simple maintenance ,high efficiency,save both time and labour.
U- Shape tank bottom, easy operate, stir uniformly, no dead angle, better for material discharge and cleaning.
Under the bottom or the sides of the tank , there is a flap dome valve (pneumatic control or manual control) of the center. The valve is arc design to make sure no material deposit and no dead angle when mixing .There is a lid and fence on the top of the tank, it seals the tank well, so that no powder will come out during mixing

Model	Power (KW)	Capacity (L/Volume)	Max Mixing Powder Weight(kg/batch )	Mixing time (mins/batch)	Size: LWH (cm)
OR100	3	280	100	6--8	18070150
OR300	4	480	300	6--8	24080190
OR500	5.5	700	500	8--10	27090200
OR1000	7.5	1500	1000	8--10	310110200
OR1500	11	2100	1500	8--12	310110200
OR2000	15	3200	2000	8--12	350130240
OR3000	18.5	4300	3000	10--16	375135240
OR5000	22	6400	5000	10--16	390165270

 The data above is general parameters of different type dry powder mixer for various production requirement, we can also offer customized service for client's specific demand.
