Pneumatic Diaphragm Pump

Place of Origin:Guangdong
Application: Food and Beverage Industry,
Power Source: Pneumatic
Pressure: 7
Structure:Diaphragm Pump
Voltage:0
Power:0
After-sales Service Provided:No overseas service provided
Certification:ce
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

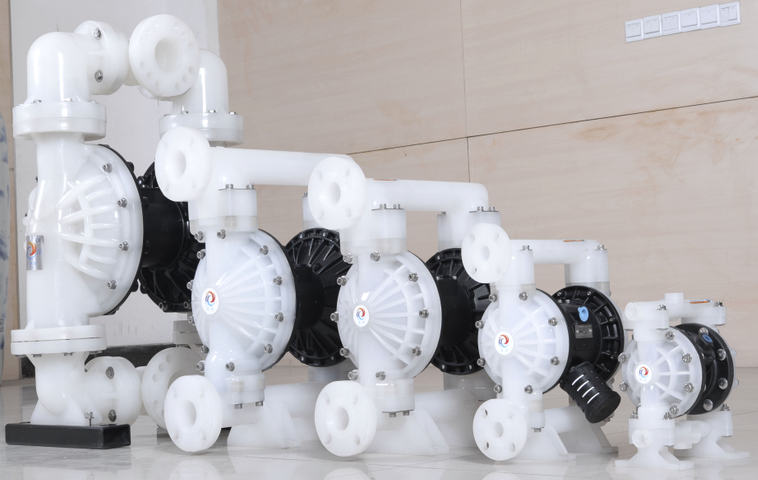

YL Air-Operated Diaphragm Pump Features



O1CN0150Diak22qpLH6Q81E_!!2201402277172



O1CN01va9yXs22qpLJK5P3T_!!2201402277172





Pneumatic Diaphragm Pump Advantages:

  • Idling ,Self-priming , Submerse capability.

  • Provide stall-free, ice-free zero leak operation.

  • Epoxy-coated air section for tough environmental conditions.

  • Low shear force , not easy to damage the material structure.

  • Bolt joint design provides even sealing pressure for optimal performance

  • Modular air valve,low pulsation operation,providing smooth and rapid changeover.

  • No electricity . It's safe and realiable while using in the flammable and explor place .

  • Diversity of material,no rotating parts,applicable to various erosive situations.

  • Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.

  • Delivery lift and flow can pass the pneumatic valve open to realize the stepless adjustment.

APPLICATION



YL Air-Operated Diaphragm Pum Application

Pumps can deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.Stroke sensors and stroke counters are available.

O1CN01IwqEZO22qpLNdsDjK_!!2201402277172

OEM air operated wilden double diaphragm pump
1.The pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
2. The pump can suck the paint, pigment, glue and adhesive etc.
3. The pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
4. The pump can suck various grinding materials, corrosive agent and clean the oil dirt etc.
5. The pump can suck various toxin and flammable or volatility liquid etc.
6. The pump can suck various wedge water, cement slurry and mortar etc.
7. The pump can suck various strong acid, alkali and corrosive liquid etc.
8. It can be used as a front-step tranmission device of the solid and liquid separation equipment.

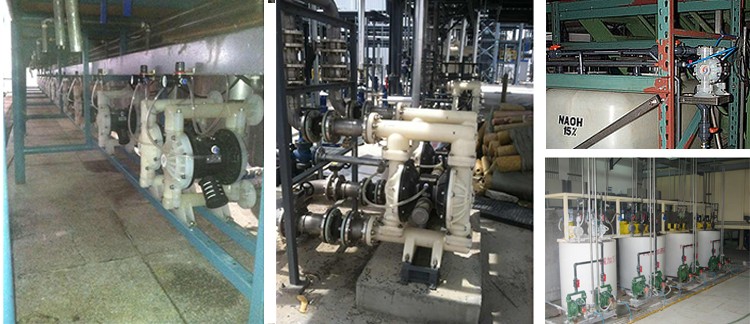

Installation



YL Air-Operated Diaphragm Pump Installation



Our pumps can be deployed in fixed installations within a process flowsystem, or used as portable or mobile units that can be transported to where it is to be used.

 OEM air operated wilden double diaphragm pump   OEM air operated wilden double diaphragm pump


Pump, self-priming
 Dry self-priming. Depending on the pump specification a suction lift of up to 8 m



Pump with positive suction
Depending on the pump type, the suction side inlet pressure may need to be limited to a max. pressure

 OEM air operated wilden double diaphragm pump  OEM air operated wilden double diaphragm pump


Pump, submerged
IT can be totally submerged in the pumped medium. The exhaust outlet must remain above the fluid level.



Pump for drums
The pump can be directly mounted on drums or containers.
